Want create site Find Free WordPress Themes and plugins The voltage source inverter is a somewhat older design and less expensive to implement Various implementations of the VSI are also known as six step twelve step or even eighteen step inverters Voltage Source Inverters Operation In the VSI the switches are turned on and off at regular intervals to

Voltage Source Inverters VSI Operation VSI Working Sumber electricalacademia.com

Power inverter Wikipedia
The voltage source inverter can be connected to a parallel resonant load or Tank circuit One method employs a series connection of inductor and capacitor or LC circuit to couple the inverter current to the parallel resonant load as shown schematically in Figure 90 In this case the magnitude of the inverter current and its waveshape is set by the value of the inductor and capacitor and

FAQ What are current source inverters and voltage source Sumber www.motioncontroltips.com

Voltage Source Inverter an overview ScienceDirect Topics
CHAPTER 3 VOLTAGE SOURCE INVERTER VSI 3 1 INTRODUCTION This chapter presents speed and torque characteristics of induction motor fed by a new controller The proposed controller is based on fuzzy logic technique in order to reduce speed and torque pulsation due to load variations

current source DC AC inverter All About Circuits Sumber forum.allaboutcircuits.com

CHAPTER 3 VOLTAGE SOURCE INVERTER VSI
16 09 2020 While the basic hardware is the same in all VFDs the inverter section of the drive can be one of several designs depending on the application requirements The two most common types of inverters are the current source inverter CSI and the voltage source inverter VSI

Power circuit of a three phase voltage source inverter Sumber www.researchgate.net

FAQ What are current source inverters and voltage source
Figure 3 shows the circuit schematic of the single phase voltage source full bridge inverter To avoid shorting out the voltage source S1 and S1 cannot be on at the same time and S2 and S2 also cannot be on at the same time

Voltage source inverter induction motor drive Download Sumber www.researchgate.net

Power electronics Wikipedia
22 01 2020 Comparison of Inverters VSI vs CSI This post will discuss about the difference between Voltage Source Inverter and Current Source Inverter Before proceeding further we will get the introduction about them What is meant by Inverter The Inverter is the power electronic circuit which converts the DC voltage into AC voltage

Three phase voltage source inverter Download Scientific Sumber www.researchgate.net

Comparison of Inverters VSI vs CSI Power Electronics A to Z
The waveform of the voltage for the voltage source inverter is square whereas the waveform of the current depends upon type of load Resistive load When the load is pure resistive type the voltage and current waveforms are in the phase therefore the current waveform is also square waveform The conduction of switch S1 and S2 is done for half cycle or 1800

FAQ What are current source inverters and voltage source Sumber www.motioncontroltips.com

Voltage Source Inverter VSI Electrical Revolution
24 06 2020 VOLTAGE SOURCE INVERTER A voltage source inverter VSI is one in which the dc input voltage is essentially constant Feedback diodes are necessary Classification series parallel bridge inverter 13 VSI Advantages Output voltage waveform does not depend on type of load

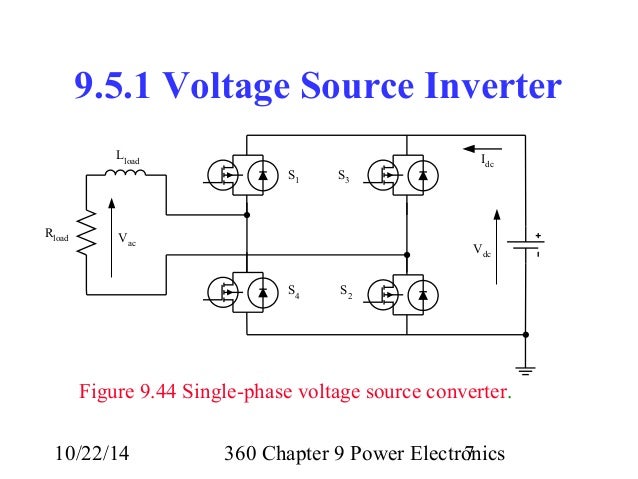

Lecture 28 360 chapter 9 power electronics inverters Sumber slideshare.net

Current Source Inverter and Voltage Source Inverter
Current Source Inverter Control A thyristor current source inverter is shown in the figure below The diodes D 1 D 6 and capacitor C 1 C 6 provide commutation of thyristor T 1 T 6 which are fired with a phase difference of 60 in the sequence of their number It also
